Supercooling or Overheating Circuit Breaking Protection by Temperature Sensor
Temperature sensor means able to feel the temperature sensor and converted into a usable output signal. The temperature sensor is the core part of the temperature measuring instrument and has a wide variety. According to the measurement method, it can be divided into two types: contact type and non-contact type. According to the characteristics of sensor materials and electronic components, it can be divided into two types: thermal resistance and thermocouple.
Comparing two or more data items to determine if they are equal, or determining the size relationship and ordering between them is called comparison. A circuit or device capable of implementing such a comparison function is called a comparator. A comparator is a circuit that compares an analog voltage signal to a reference voltage. The two inputs of the comparator are analog signals, and the output is binary signal 0 or 1. When the difference of the input voltage increases or decreases and the positive and negative signs remain unchanged, the output remains constant.
Temperature sensor overcooling circuit breaker circuit diagram
Comparing two or more data items to determine if they are equal, or determining the size relationship and ordering between them is called comparison. A circuit or device capable of implementing such a comparison function is called a comparator. A comparator is a circuit that compares an analog voltage signal to a reference voltage. The two inputs of the comparator are analog signals, and the output is binary signal 0 or 1. When the difference of the input voltage increases or decreases and the positive and negative signs remain unchanged, the output remains constant.

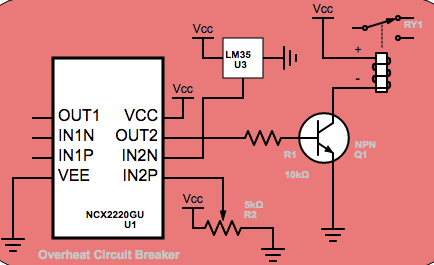

Temperature sensor overheat circuit breaker circuit diagram
Temperature sensor overcooling circuit breaker circuit diagram
The circuit breaker is shown in the case of overheating and undercooling, in which the NCX2220 is a low voltage comparator and the LM35 is a temperature sensor.
