Glass Sealed SMD NTC thermistor

Product Item: Glass Sealed SMD NTC thermistor
Category: NTC
The utility model relates to a chip-type glass-encapsulated negative temperature thermistor. It has a glass case, a resistor chip and two metal electrodes. The metal electrode is a patch type, and the resistor chip is fixed in a glass case. Two metal electrodes are installed at both ends of the glass case. The metal electrodes at both ends are respectively connected to the electrodes on both sides of the resistance chip through a conductive body integrated with the metal electrode, and the conductive body and the resistance chip are encapsulated in a glass case at a high temperature. The utility model is electrically connected to the outside through a metal electrode, which requires less installation space, more convenient installation, no lead bending, and it is not easy to damage the product during installation.

  • PRODUCT DETAIL
The utility model relates to a chip-type glass-encapsulated negative temperature thermistor. It has a glass case, a resistor chip and two metal electrodes. The metal electrode is a patch type, and the resistor chip is fixed in a glass case. Two metal electrodes are installed at both ends of the glass case. The metal electrodes at both ends are respectively connected to the electrodes on both sides of the resistance chip through a conductive body integrated with the metal electrode, and the conductive body and the resistance chip are encapsulated in a glass case at a high temperature. The utility model is electrically connected to the outside through a metal electrode, which requires less installation space, more convenient installation, no lead bending, and it is not easy to damage the product during installation.

A chip-type glass-encapsulated negative temperature thermistor, which is characterized by having a glass case (1) and a resistor chip.
(2) and two metal electrodes
(3) Metal electrode
(3) is a chip type, the resistor chip (2) is fixed in the glass case (1), and two metal electrodes (3) are respectively installed at both ends of the glass case (1). The metal electrodes (3) at both ends are respectively connected to the electrodes on both sides of the resistance chip (2) through a conductive body integrated with the metal electrode (3), and the conductive body and the resistance chip (2) are enclosed in a glass case (1) at a high temperature.


Product parameters

item Parameters and instructions
Nominal resistance 25 ° C Resistance R25 = 400R ~ 2.3M, can be customized
Thermal index B value R25 / R85 B25/85=(1/T1-1/T2)*ln(RT1/RT2) =3000~4600,Deviation ± 1%, can be customized
Tolerance ±1%, ± 2%, ±3%, ±5%
Insulation resistance 500V/DC:≥100MΩ
Operating temperature -50℃~+300℃
Thermal time constant 8-12s(Still air)
Dissipation factor ≥1.4 mW℃(Still air)

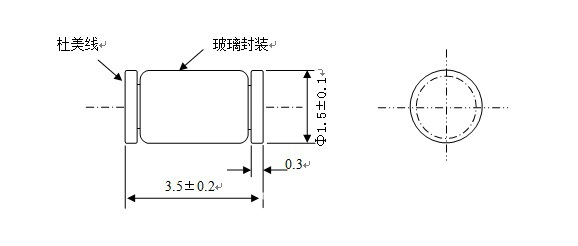

Product appearance dimension drawing
Glass SMD thermistor

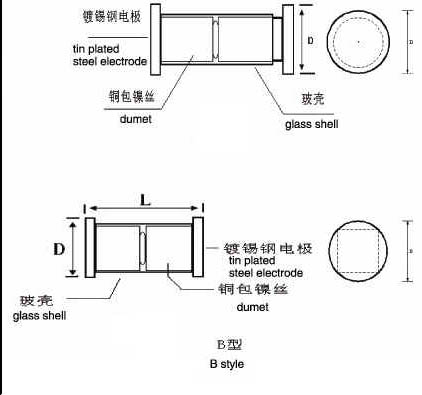

Structure of SMD glass NTC
Product Features and Applications
item Description
Product Features        Resistance accuracy, B value of high precision, stable and reliable;
        Interchangeability, good consistency;
        High temperature welding, no drift;
        Small size, easy to patch installation.
use         Temperature Measurement;
         temperature control;
         Temperature compensation.
application range         Household appliances temperature control and temperature detection:
Such as rice cookers, toasters, air conditioners, microwave ovens, electric fans, electric heating stoves, etc.
         Office automation equipment, such as copier, printer temperature detection or temperature compensation;
         Industrial, medical, environmental protection, weather, food processing equipment, temperature control and testing;
         Liquid level indication and flow measurement;
         The field of mobile phone batteries and chargers;
         Instrument coils, integrated circuits, quartz crystal oscillator and thermocouple temperature compensation.

MF58 glass seal NTC thermistor resistance and B value parameters
Resistance

B value

R25
400 3200
500R 3000
1K 3300 3470
1.8K 3460
2K 3470 3900
2.5K 3490
2.89K 3470
4.7K 3230 3540
5K 3470 3950 3600 3274 3350 3530
7.5K 3430
8.2K 3950
10K 3270 3380 3435 3470 3600 3740 3950 4080
11.78K R80 3550 3550
12K 3600
12.5K 3950
15K 3950 4100
20K 3950 4000 4160 4200
22K 3750 4200
22.5K 4200
30K 3850 3950
33K 3950
40K 3950
40.27K 3950
47K 3950
50K 3950 3990 4050
57.5K 3950
58.3K 3980
92K 3950
100K 3400 3900 3950 3990 4050 4100 4200 4360
104K 3460
105K 4200
107.1K 4220 4200
150K 3950 4300
192K 3860
200K 4420 3570 3899 3500 3520 4200
230K 4150 4370
238K 4200
250K 3950
455K 4120
470K 4370
500K 4050 4260 4300
520K 4050
530K 4080
533K 4090
540K 4090
542K 4110
545K 4083
548K 4110
583K 4140
1M 4200 4400
1.1M 4230
1.388M 4600
2.3M 4500
