What are the advantages of the integrated thin film NTC temperature sensor?

In the field of NTC thermistors, there are currently two insufficient NTC thermistors and single-ended glass-sealed thermistors on the market. Among them, single-ended glass-sealed NTC thermistors are mostly insulated through insulated bushing to achieve pin insulation because the lead is not insulated. Because the casing can not be fixed, the process will move back and forth. Because of the low cost and efficiency of manual casing piercing, the lead with poor sealing is easy to oxidize. The other is the MF5B single-ended glass-sealed NTC thermistor is soldered together with FPC or FFC flexible cable or wire. The process currently has certain defects. For example, the secondary welding process has a quality hazard and the welding efficiency is low, the cost is high, and the appearance is affected. In addition, the FPC wire is usually flat and it is not convenient to link with the PCB.

In order to solve the problems in the above two processes, Yaxun Electronics invented an integrated surface temperature detecting film NTC temperature sensor. And on November 30, 2016, it was authorized by the State Intellectual Property Office for a utility model patent certificate. The utility model name is: an integrated thin film NTC temperature sensor.

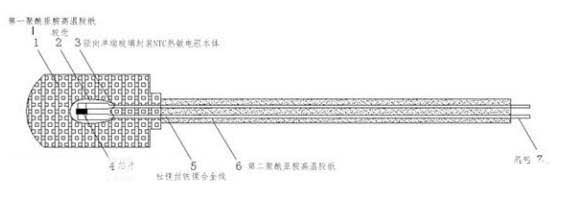

The "one-piece surface temperature detecting film NTC temperature sensor": Including the first polyimide high temperature adhesive paper, glass shell, radial single-end glass package NTC thermistor body, NTC chip, magnesium wire, ferronickel wire, second polyimide high temperature adhesive paper and tail; Radial single-end glass encapsulated NTC thermistor body is equipped with glass shell, the inner glass shell is equipped with NTC chip, and the NTC chip is welded with magnesia wire. The second polyimide high temperature adhesive tape covers the Du magnesium wire outside the glass casing. The first polyimide high temperature adhesive tape covers the glass envelope and a portion of the second polyimide high temperature adhesive tape. See Figure 1 for details.
Thin film NTC temperature sensor
In the utility model, a flat FPC wire is provided in the glass casing. The first polyimide high temperature adhesive tape and the second polyimide high temperature adhesive tape covered sensor have a thickest thickness of 1.7 mm. The chip uses an NTC thermal chip. Compared with the prior art, the utility model developed by the rich temperature sensor has many advantages:
1, wire insulation, the highest temperature resistance up to 300 ° C, the wire is soft and can be properly bent for narrow space installation and fast surface temperature measurement;
2. The single-ended glass-sealed NTC thermistor element is packaged in polyimide (PI) or other high-temperature adhesive tape material to ensure the integral molding of the film NTC temperature sensor. The thin film NTC temperature sensor Du magnesium wire leads from the NTC thermal chip soldering without the need for secondary processing of the link wire;
3, thin film NTC temperature sensing avoids wire capacitance oxidation;
4, the film NTC temperature sensor can work in the temperature range of -30 ° C ~ 300 ° C;
5, thin film NTC sensor ultra-thin design maximum thickness of 1.7MM;
6, the film NTC temperature sensor wire length can be defined;
7, the film NTC temperature sensor is waterproof;
8, thin film NTC temperature sensor is simple to manufacture, good stability, can quickly measure the surface temperature of the heating element.
